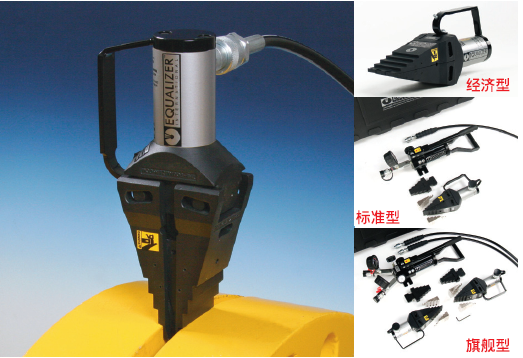

英国EQUALIZER SG15TE(ZG15TE) 零间隙液压法兰分离器
SECURE-GRIP HYDRAULIC
FLANGE SPREADERS
● Through the research and test for many years, finally launched in the world at present,
the safest,most innovative design of EQUALIZER zero clearance flange separator.
● Zero clearance flange separator EQUALIZER system using a ring expansion, a unique
patenteddesign, can use the flange in minimum clearance or gapless separation.
● This groundbreaking and innovative tools, system using expansive ringer technology
patent design,can provide monitoring, separation force regulation; flange while its
separation can be very small gaps, even without gap.
● Blind plate and iron plate flange insert and remove the best tool.Function
● Test● Pipeline construction
● Normal maintenance
● Downtime
● Pipeline testing
● Valve replacement
● Offshore operation
Characteristic
● Ring expansion unique patented design● Only minimal or no insert into the gap between the
● Mechanical locking design embedded in
● Does not produce environmental pollution
Operating benefit
● The unique technology of zero clearance, no doubt, make it become the whole world, the security of the flange separator.● The applicable scope is broad, flange contains ANSI, DIN, SPO, ASME, API and BS etc.
● The operation is safe, simple, time-saving
● Monitoring and control output can be separated
● Lightweight, easy to carry
● Does not produce environmental pollution
The SG15TE tool parts
● Separation output 15T● The separation distance 100.0mm (3.94 ")
● 2 meters hydraulic hose *1
● 15T hydraulic cylinder *1
● Closed manual pump *1 with pressure gauge
● 300mm (11.8 ") stainless steel caliper *1
● Ring a driving handle *1
● Safety cushion block *1
● Expansion ring *6
● Application of bolt aperture 47.5mm-62.0mm (1.87 "-2.44")
● Chinese operating instructions *1
● Durable portable toolbox of *1
● The weight of 26kg
