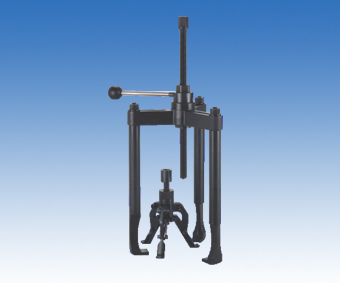

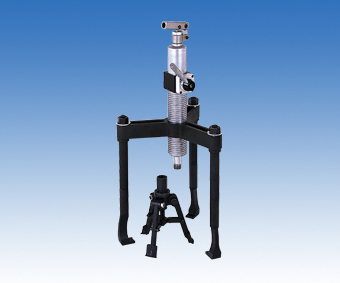

The first Three-in-one push puller in the world
● Unique patented design of the development of double acting hydraulic main body, can provide two-way lifting
power and hydraulic pull back.
● A design of a rotary shaker, can let the user in any direction, the operation of puller.
● Elastic thimble design center, positioning can be accurate (removable).
● The operation of power, lifting part, up to 12Tons; the pull back part, up to 8Tons.
● Claw design unique, not replace, can be used for outside drawing and installation of the workpiece,is very simple.
● Three jaw structure design, whether it is installed on the inner outer pull, pull, can provide the most stable and
balanced efficiency.
● According to the requirement of the use, the user can use the extension rod (standard equipment),achieve different
Yang Cheng demand.
● In part by pulling, three claw synchronous design, can ensure that no loose, load balance and selfcentering effect;
at the same time, the outer screw type design, easy disassembly and replacement.
● One double acting hydraulic main body, is provided with a built-in type safety valve, can avoid thedamage of the
tool and workpiece.
● The built-in type safety valve, completely closed to oil pressure inside the body, can prevent the user from
misspecification pressure, caused by damage and possible tools people hurt.
● Claw and claw seat, with chrome manganese alloy steel, forged; provide users the most secure anddurable choice
Cost savings
● Entirely built in safety valve, ensure operation safety pressure Paula horses were in the range of rated, and
prolong the service life of the gear puller.
● Full function, three machine integrated a full range of design, can greatly save manpower, rechargetools and
operating time.
● The world's first both outside drawing, installation and internal pull function, is the removal and installation of the
most efficient and cost-effective tool.
   |
Model No. | Function （ton） | Capacity （ton） |  Reach （mm） |  Spread （mm） |  Stroke （mm） |  Pump Tip（mm） | Wight （kg） | ||
E | F | D | |||||||
PD12080 | Installation | 8 | 270 | 44-280 | 140 | M12-P1.75 | 30 | 28 | 19.5 |
Outside the demolition | 12 | 260 | 85-300 | 140 | -- | -- | 28 | -- | |
Within the demolition | 8 | 130-150 | 110-210 | -- | 1"-12UNF | -- | -- | -- | |
PDR12080 | Installation | 8 | 270 | 44-280 | 140 | M12-P1.75 | 30 | 28 | 17.5 |
Outside the demolition | 12 | 260 | 85-300 | 140 | -- | -- | 28 | -- | |
Within the demolition | 8 | 130-150 | 110-210 | 140 | 1"-12UNF | -- | -- | -- | |
