 | CC-102 Separate Hydraulic Punching Machine ●Capacity：12T Weight：7Kg. ●Thick：Iron Plate 0-3.2mm；Stainless Steel 0-1.5mm. ●The most suitable for switch box, panel meter perforation. ●Punching die adopts high speed steel production, long service life. ●Attached punching die cavities and a total of six groups，1/2"ф(22mm)、 3/4"ф(27.5mm)、1"ф(34.3mm)、11/4"ф(43mm)、11/2"ф(48.9)、 2"ф(60.8). ●Attached to the hydraulic punching host 1. ●Accessories: Storage box x 1 . ●Note: by mainframe head (output of 20 tons, the largest aperture ф 22-150 - mm) are optional. |

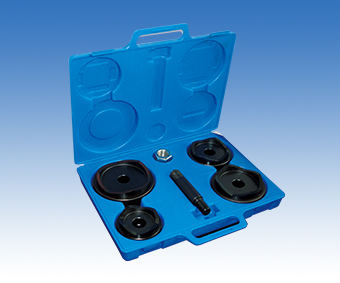

 | CC-104 Separate Hydraulic Punching Machine ●Weight：11.5公斤，Host is not attached to the hydraulic punching head. ●Thick：Iron Plate 0-3.2mm；Stainless Steel 0-1.5mm。 ●The most suitable for switch box, panel meter perforation. ●Punching die adopts high speed steel production, long service life. ●Attached punching die cavities and a total of four groups， 21/2"ф(76.6mm)、3"ф(89.4mm)、31/2"ф(102.6mm)、4"ф(115.3mm)。 ●Accessories：Storage box×1。 ●Note: can be customized corners mold. |
