FA4TM MECHANICAL FLANGE ALIGNMENT TOOL

Date:2014/12/22 9:35:05 Hits:1344

Flange misalignment EQUALIZER correction tool, aiming at the wheel flange traditional appear dislocation and rotary dislocation condition. Provide simple solutions, safety and modernization, canreduce the risk, more can save a lot of labor cost.




FA4TM

MECHANICAL FIXED FLANGE AND ROTATIONAL ALIGNMENT TOOL


Flange misalignment corrector

● Flange misalignment EQUALIZER correction tool, aiming at the wheel flange traditional appear dislocation and rotary dislocation conditions, providing a simple, safety and modernization program,can reduce the risk, the labor cost is saved a lot of.
● Misalignment of HT125KM for small low pressure flange, provide the simplest solution.
● Correction tool FA3TM mechanical flange rotation dislocation and dislocation, suitable for middleflange.
● Correction tool FA6TE hydraulic flange misalignment, suitable for high pressure flange.



Function

● Test
● Pipeline construction
● Normal maintenance
● Downtime
● Pipeline testing
● Valve replacement
● Offshore operation

Characteristic

● Applicable to offshore and on land work
● Anti embroidered light does not produce environmental pollution
● Designed for high pressure flange design

Operating benefit

● Time saving, simple and safe operation
● Lightweight and easy to carry, is suitable for narrow space operation
● Without the use of a sling, NRK hyacinth etc.
● Continuous use

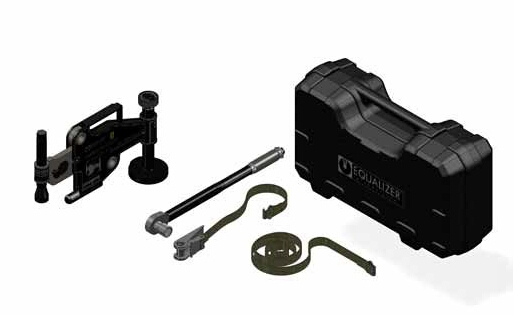

The FA4TM tool parts

● The 4T corrected output
● The applicable minimum bolt aperture 25mm (1 ")
● The maximum correction distance 113.0mm (4.45 ")
● 50ft/lbs (67N/m) torque wrench *1
● Chinese operating instructions *1
● Durable portable toolbox of *1
● The weight of 8.6kg
